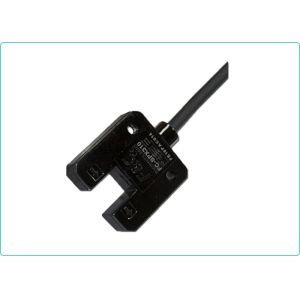

    10mm Width Slotted Optical Switch Through-beam Detection Photoelectric Sensor

    Ask Lasest Price
    Brand Name : F&C
    Model Number : FC-SPX310P
    Certification : CE, ROHS, ISO
    Price : negotiable
    Supply Ability : 50000pcs per month
    Delivery Time : 10days after depsite
    • Product Details
    • Company Profile

    10mm Width Slotted Optical Switch Through-beam Detection Photoelectric Sensor

    10mm Width Slotted Optical Switch Through-beam Detection Photoelectric Sensor

    they are very popular with the application of linear Slide modules. now you can get Free samples for test and 3 years warranty if interested to them.

    Advantages
    1. Easy to install with mall volume, almost a half than others.
    2. Four wires outputting, every sensor come with function of NO and NC.
    3. Many other mini-type for choice.
    4. LED indicator to shows working situation.
    5. Stable working without influence by other light.
    6. Every single products in individual package.
    7. Standard 2m cable length, can customize to other cable length.

    8. fast delivery, common order will ship out within 3 days .



    10mm U-shaped NPN NO NC infrared photoelectric sensor with CE.jpg

    NPN NO.NCFC-SPX310
    PNP NO.NCFC-SPX310P
    Standard Detection Objectdiameter 1mm opaque objects
    Repeat accuracy0.02mm
    Detection Distance10mm
    Light Source940 nm Infrared modulated light
    Operating Voltage5V-24VDC
    Response Time0.3ms Max.
    Current Consumption15mA Max.
    Load current100mA Max at 24 VDC
    Insulation Resistance20M Ohm Min. at 500 VDC
    Dielectric strength60 seconds at 1000VAC 60HZ
    Protection DegreeIP64
    Operating Temperature-10℃-50℃(No Icing)
    Reverse Polarity ProtectionYes
    Short Circuit ProtectionYes
    MaterialABS
    Wire MethodPrewired diameter 3mm*2M/- 4wires
